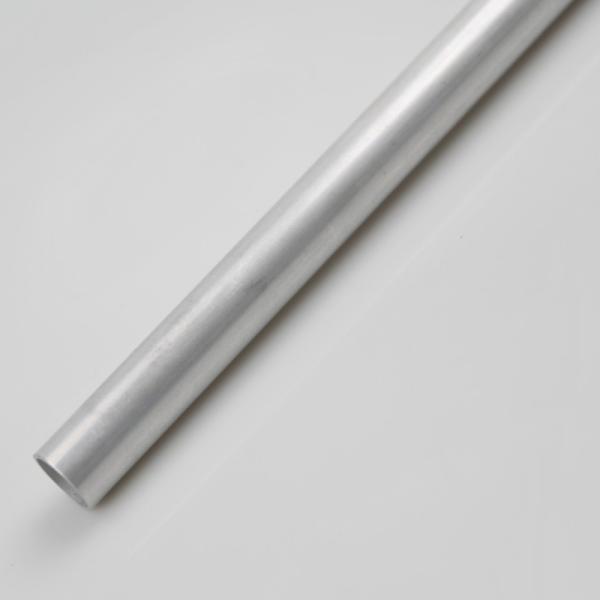

Outside Diameter 9.95mm For Radiator Grade 3003 Aluminum Alloy
Tubes
Crafted from 3003H28 aluminum tube pancake coils, our product
showcases top-notch engineering. This rust-resistant alloy,
containing 1.0%-1.5% manganese for perfect balance, delivers
outstanding performance across various applications. Its
flexibility makes it ideal for diverse industrial environments.
The tube's robust anti-corrosion feature enhances heat exchange,
boosting the efficiency of cooling and AC systems. Moreover, its
excellent welding characteristics simplify component connections,
enhancing overall stability.
With dimensions of 9.95 mm diameter and 0.75 mm thickness, this
tube is a valuable addition to sectors such as air conditioners,
refrigerators, and automotive air conditioning devices. Its
adaptability meets diverse application requirements.
In conclusion, the 3003H28 aluminum tube pancake coil is a crucial
metal in refrigeration and air conditioning, offering an unmatched,
dependable, and cost-effective solution for modern refrigeration
equipment. It promises long-lasting performance and great value.
Features:
We take pride in creating durable aluminum round tubes with
exceptional precision. Our specialty, the 3003 tube offers robust
resistance to corrosion, flexibility, and strength. Precision and
annealing result in superior mechanical properties post-cold
working.
Moreover, our shiny, reflective tubing resists harsh chemicals,
ensuring consistent performance. A uniformly distributed aluminum
foil core ensures reliable sealing, blocking moisture and odors.
Perfect for high-pressure applications, it provides sturdy pipeline
protection.
Additionally, our 3003 cylinder tube boasts excellent heat
resistance, standing firm even under high temperatures. Post-cold
working enhancements ensure continuous functionality, effortlessly
adjusting to varying heated conditions.
Finally, our tubes offer simple assembly for your convenience.
Their lightweight and flexibility allow easy bending and
connection. With exceptional durability, they enhance safety while
boosting efficiency.
Production Process:
Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat
treatment-flaw detection -forming-inspection-finished product
packaging
Stright pipe
Raw material
procurement-inspection-cleaning-extrusion-coiling-straightening-flaw
detection-fine cutting-cleaning-heat treatment-inspection-finished
product packaging
echical Parameters:
Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
Specifications can be customized according to customer
requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
