Features:
Extruded aluminum tubes are characterized by low cost, high
corrosion resistance, non-destructive testing, zero wound point and
easy installation.
Good corrosion resistance, weldability, thermal conductivity, light
weight.
Customizable length, non-destructive flaw detection, zero wound
point, multi-layer packaging, transportation safety length
customized as you wish, efficient protection Insulation of
oxidation.
Performance
Features.pdf
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
| 1- Appearance | Aluminium tubes without defect, without blow on its surface,
without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 3003 |
3- Composition of alloy (%) Si Fe Cu Mn Zn Autres (others) |
0.60 0.70 0.05-0.20 1.0-1.5 0.10
|
Mechanical properties:
| Model Number | State | Tensile Strength /MPa | Yield Strength/MPa | Elongation |
| 3003 | O | 95～130 | 50-80 | ≥32% |
Production Method
| Model Number | State | Shape | Size and Tolerance |
| Specification(D) | Tolerance |
Nominal Wall Thickness(δ)
| Tolerance |
Extruded Aluminum Tubes

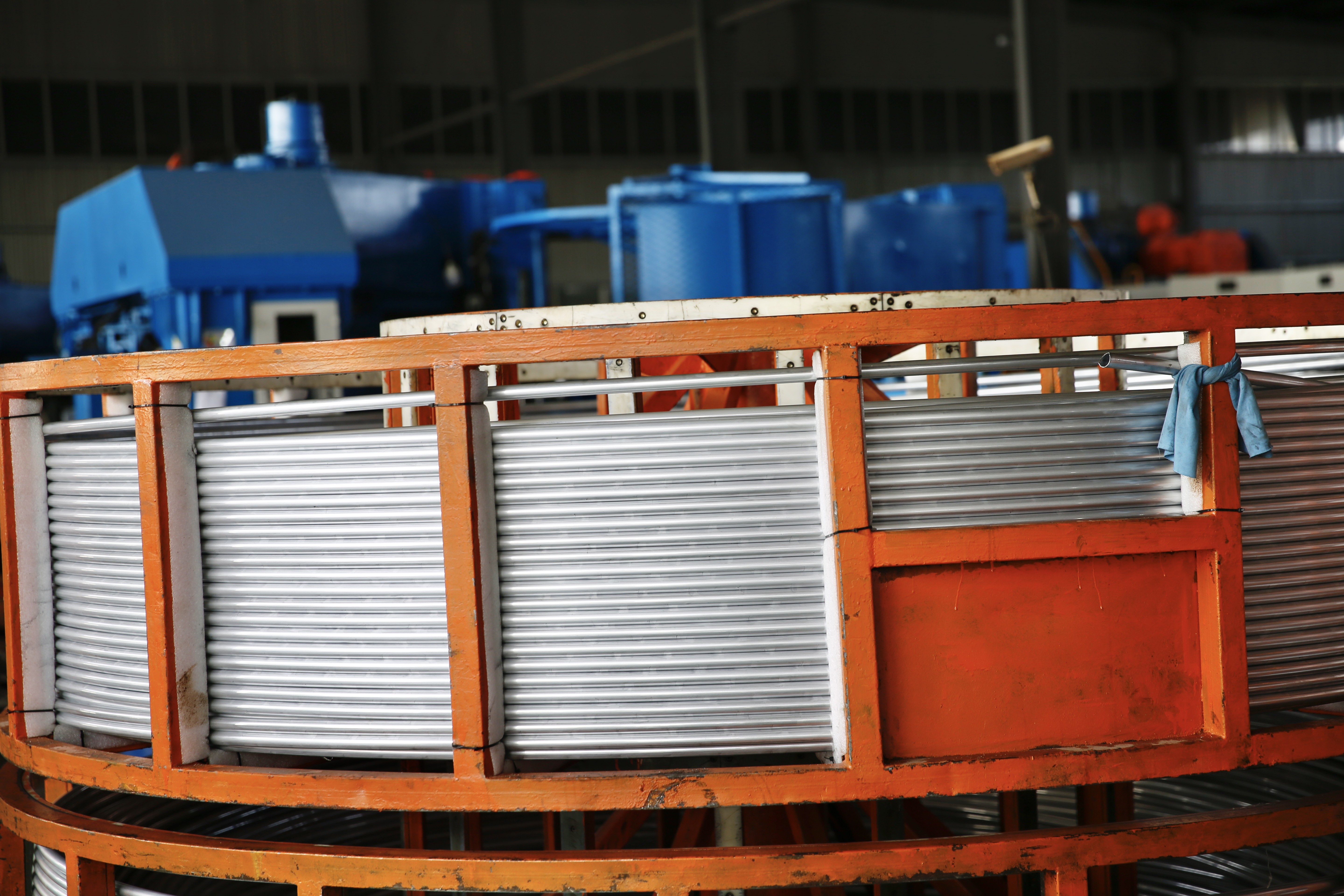

| 3003/3103 | O | Coil or Straight Pipe | D＜6 | ±0.05 |
δ≤0.60 | ±0.04 |
| φ6≤D≤10 | ±0.06 | δ≤0.8 | ±0.05 |
| 0.8<δ≤1.5 | ±0.06 |
| φ10≤D≤20 | ±0.07 | 1<δ≤2 | ±0.08 |
| T5 | Straight Pipe | D≤25 | ±0.15 | 1<δ≤3 | ±0.1 |
| Φ25＜D≤50 | ±0.2 | ±0.15 |
| Φ50＜D≤80 | ±0.25 |
O——Annealing
How to order:
You can then download a form from this website and fill it out with
basic details.
Send it to the provided e-mail address, and our engineers will
price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements
Sheet directly.
Yuneng
Product Requirements Table.docx
FAQ:
http://mao.ecer.com/test/al-tubes.com/cases/faq-15908.html
We can provide technical support and services for using aluminum
pipes, such as technical consultation and production assistance.
Our expert specialists can help you with any issues that your
product may encounter. We also provide frequent after-sales service
to ensure that your items are constantly operating at peak
efficiency. We are proud of our work and endeavor to give excellent
client service.
If you have any queries or complaints about the product or how you
utilize it, please contact us. We will always provide you the
answers you seek.
