Pure aluminum, which has outstanding forming and processing
properties, strong corrosion resistance, good weldability, and
electrical conductivity, is combined with a small amount of iron to
create 1050a.In items where great strength is not required, 1050a
is often used.
Features:
Extruded Aluminum Tubes
In terms of strength and structure, it is weaker than seamless
aluminum tubes, but because of its higher production efficiency and
comparatively lower production difficulties, it can be produced
more cheaply.
Compared to other comparable products, processing flexibility and
longitudinal (extrusion direction) mechanical qualities are
significantly higher.
Applications:

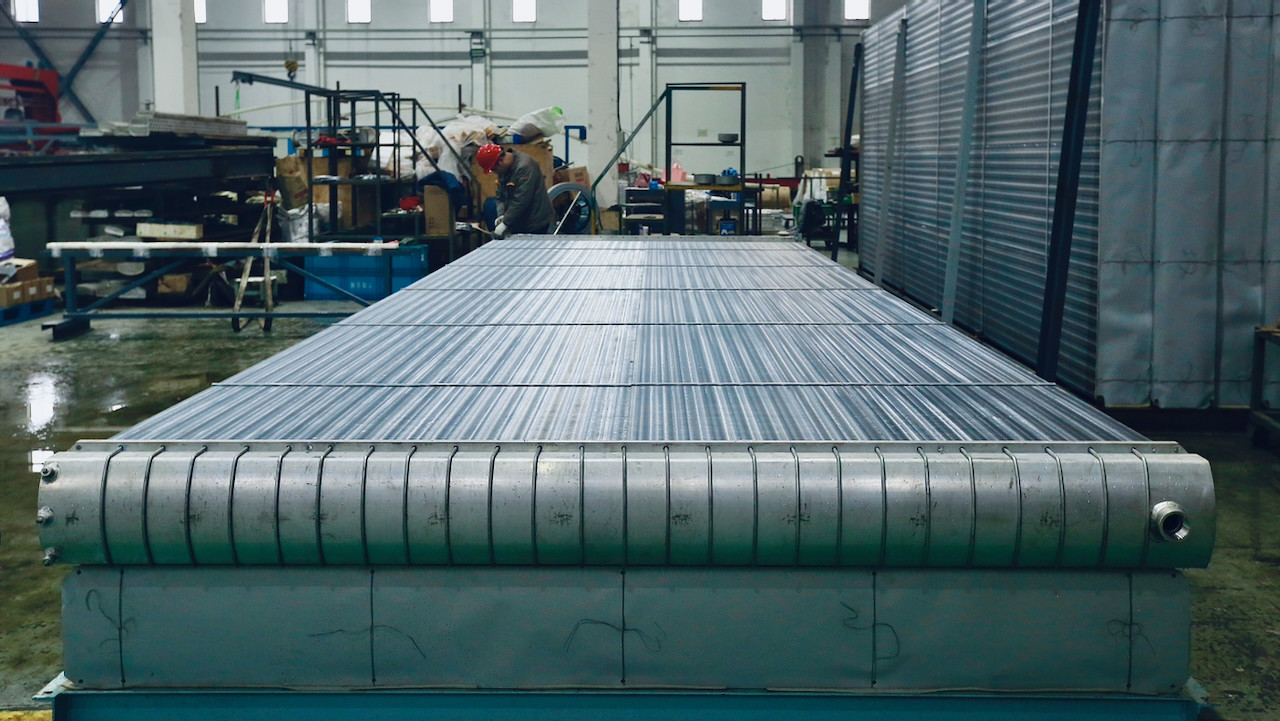

Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
The properties of industrial pure aluminum include excellent
plasticity, resistance to corrosion, strong electrical and thermal
conductivity, but low strength; it cannot be reinforced by heat
treatment and has poor cuttability. However, it may be welded by
contact. gas welding.
| 1- Appearance | Aluminium tubes without defect, without blow on its surface,
without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 1050A |
3- Composition of alloy (%) Fe Mg Mn Ti Al Autres (others) |
0.40 0.05 0.05 0.05 99.50 0.05
|
Model Name |
Model Number | Outside Diameter /mm |
Wall Thickness/mm | Maximum Length/m | Length/mm | Tensile Strength /MPa | Non- proportional Elongation Strength /MPa | Elongation After Break A50/mm |
Main Size | Series 1, Series 3 | 20-32 | 0.8-2.0 | | 5000-15000 |
|
|
|
Example | 1050A | 28 | 1.0 | 18 | 7969 | 100~135
| ≥80 | ≥5.00 |
25 | 0.9 | 6959 |
23 | 1.5 | 9365 |
32 | 1.3 | 12266 |
H12 -- tensile strength value corresponds to the intermediate value
between the annealed state O and the 1/2 hard state, called the 1/4
hard state.
Main Product:
How to order:
You can then download a form from this website and fill it out with
basic details.
Send it to the provided e-mail address, and our engineers will
price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements
Sheet directly.
Yuneng
Product Requirements Table.docx
