When you choose our 3003H28 aluminum wire, you can rest assured of
several advantages. Firstly, we prioritize quality, utilizing
advanced production techniques and rigorous quality control
measures to ensure that each and every product meets the strictest
standards. Secondly, it is exceptionally durable. The 3003H28
aluminum alloy from which our aluminum wire is crafted boasts
remarkable corrosion and wear resistance, enabling it to maintain
consistent performance in a variety of harsh conditions for
extended periods. Additionally, we pride ourselves on accurate
sizing; our precision machining equipment and rigorous size
measurement processes guarantee millimeter-accurate dimensions of
each aluminum wire, catering to your specific needs.
Lastly, our 3003H28 aluminum wire's versatility is unparalleled.
Its exceptional physical, chemical, and welding properties make it
suitable for a wide range of applications across multiple
industries. Regardless of your line of work, you will find the
3003H28 aluminum wire to be an indispensable figure. It is truly an
all-purpose aluminum wire that caters to your diverse needs.
Production Process:
Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat
treatment-flaw detection -forming-inspection-finished product
packaging
Stright pipe
Raw material
procurement-inspection-cleaning-extrusion-coiling-straightening-flaw
detection-fine cutting-cleaning-heat treatment-inspection-finished
product packaging
Techical Parameters:

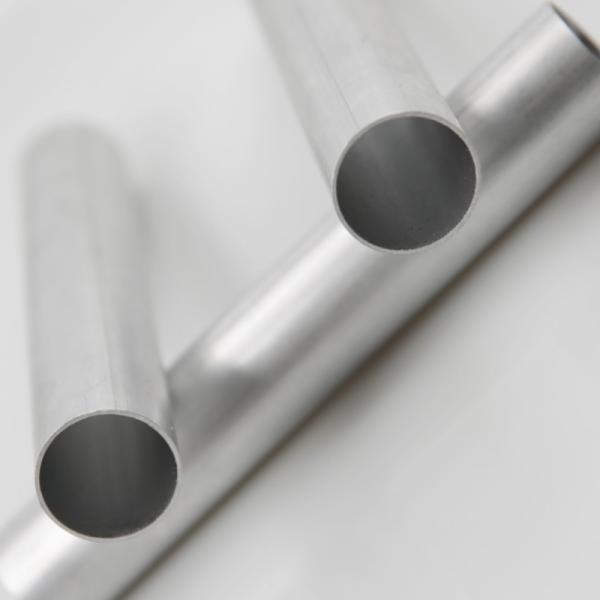

Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
Specifications can be customized according to customer
requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
HOW TO ORDER
Firstly,here is a more detailed product description about Aluminum
Alloy Tubes of Heat Exchanger.
Heat Exchanger
Tube-1.pdf
Hear Exchanger
Tube-2.pdf
You can then download a form from this website and fill it out with
basic details.
Send it to the provided e-mail address, and our engineers will
price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements
Sheet directly.
Yuneng Product
Requirements Table.docx
