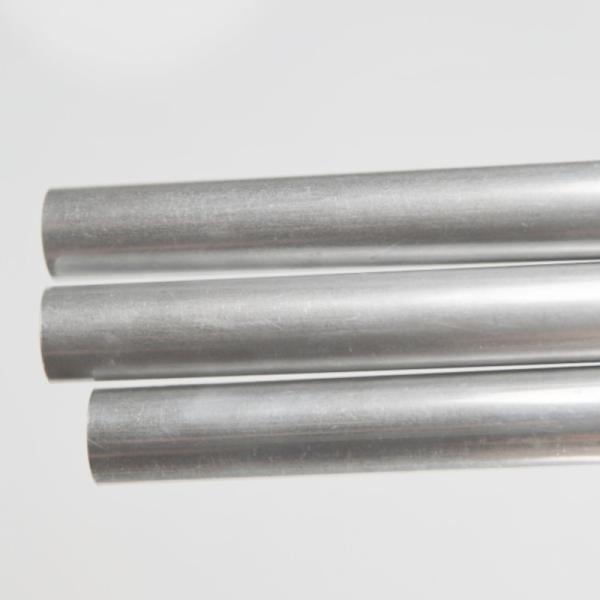

Grade 1050 Heat Exchanger Tube Aluminum Alloy Tube 1 Series
Aluminum Alloy Φ32mm
Product Description:
It mainly involves 1 series, 3 series, 6 series and self-developed
special anti-corrosion aluminum alloy. All raw materials use the
famous brand high-quality remelting rod, control the quality from
the source.
It is mainly used in various cooling heat exchange tubes. The tube
is widely used in air conditioning, refrigerators, heating and air
conditioning equipment. The product can provide different state
specifications of ruler tube and coil tube. Our products are large
heat exchanger tubes, using high-quality remelted aluminum rods,
quality control from raw materials, using large-tonnage extruder,
hot extrusion cold drawing mode of production, high product
density, high heat transfer performance, high corrosion resistance,
small tolerance, better quality. The products are produced by large
extruder, with advanced production process and special heat
treatment process, strict control of various processes, high
precision, low leakage rate, good quality, high induction density.
The utility model can meet the requirements of the channel after
the user uses the expansion pipe. The utility model can meet the
user's requirements for the use of the back channel of the
expansion pipe. Product specifications and performance can be
customized according to customer requirements. The length of the
product can reach 18 meters.
Features:
The company has a full set of aluminum tube production equipment,
aluminum tube testing, strict control of the production process, to
ensure product quality and mechanical performance is good, higher
accuracy, tolerance range is small. It can be controlled in the
range of + 0.02 mm.
The company is specialized in the production of various
specifications of aluminum coil and aluminum straight tube,
suitable for a variety of refrigeration and heat exchange
equipment. In the production process, strict quality control, and
the use of advanced production technology and special heat
treatment technology. To provide customers with the most stable
quality products.
Techical Parameters:
Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
The specifications in the form can be customized according to
customer's requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
Production Process:
Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat
treatment-flaw detection -forming-inspection-finished product
packaging
Stright pipe
Raw material
procurement-inspection-cleaning-extrusion-coiling-straightening-flaw
detection-fine cutting-cleaning-heat treatment-inspection-finished
product packaging
Support and Services:
We support and provide technical services for the use of aluminum
pipes and assist customers to solve the production problems arising
during the actual use process. Including the performance detection
of aluminum pipe, technical analysis, the use of the back channel,
aluminum pipe welding, aluminum pipe pipe, aluminum pipe bending,
finished product leakage detection, etc., at the same time in the
use of related problems, we will also assist customers to solve
problems in the first time. And make corresponding adjustments
according to the actual situation.
FAQ.:
Q1: What kind of material alloy is the product?
A1: Currently, there are 1 series, 3 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be
produced?
A2: can produce from hard state to soft state and interval
performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according
to the requirements, such as fixed ruler straight pipe and coil
pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
