1050 Aluminum Coil Tubing For Superior Weldability And Conductivity

Ask Lasest Price
Brand Name :	Yun Neng
Model Number :	1050
Certification :	ISO9001 ISO14001 ISO45001
Price :	negotiation
Payment Terms :	T/T
Supply Ability :	50,000 mt per year
Delivery Time :	30 working days after received your down payment

Add to Cart

Product Details
Company Profile

1050 Aluminum Coil Tubing For Superior Weldability And Conductivity

1050 Aluminum Coil Tubing for Superior Weldability and Conductivity

Specially crafted for large power stations, the Large heat exchange equipment plays a pivotal role in dispersing waste heat produced during power generation. It effectively dissipates this heat into the atmosphere, thereby ensuring the equipment operates at its peak performance.

http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html

By infusing a mere trace of iron into pure aluminum, 1050 is born, boasting remarkable forming and processing capabilities, exceptional corrosion resistance, superior weldability, and electrical conductivity. Its versatile properties have made 1050a a highly sought-after option for applications that do not necessitate peak strength.

Features:

Extruded Aluminum Tubes

While not possessing the structural and strength properties of seamless aluminum tubes, this material excels in terms of cost reduction due to its heightened production efficiency and comparably straightforward manufacturing process. Additionally, it boasts remarkable processing flexibility, with its longitudinal (extrusion direction) mechanical properties significantly surpassing those of similar products.

Applications:

Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.

Technical Parameters:

Industrial pure aluminum are characterized by high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength, can not be strengthened by heat treatment, cuttability is not good; can accept contact welding . Gas welding.

1- Appearance

Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil.

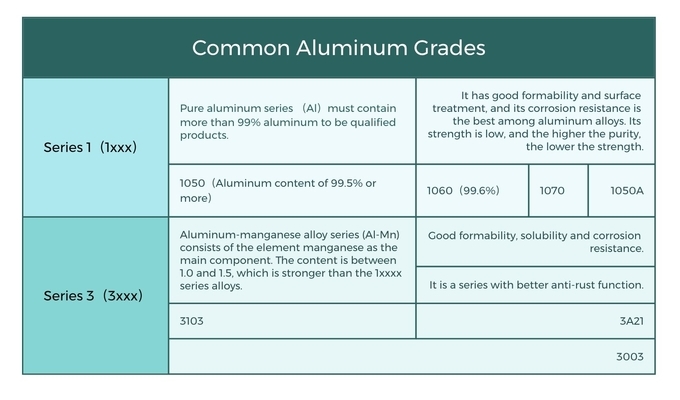

2- Alloy Grade

1050

3- Composition of alloy (%)

Autres (others)

0.40

0.05

99.50

0.05

Model Name	Model Number	Outside Diameter /mm	Wall Thickness/mm	Maximum Length/m	Length/mm	Tensile Strength /MPa	Non- proportional Elongation Strength /MPa	Elongation After Break A50/mm
Main Size	Series 1, Series 3	20-32	0.8-2.0		5000-15000
Example	1050A	28	1.0	18	7969	100~135	≥80	≥5.00
		25	0.9		6959
		23	1.5		9365
		32	1.3		12266

Main Product:

How to order:

You can then download a form from this website and fill it out with basic details.

Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.

http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html

Alternatively, you can download the Technical Data Requirements Sheet directly.

Yuneng Product Requirements Table.docx

FAQ:
http://mao.ecer.com/test/al-tubes.com/cases/faq-15908.html
