3003 H14 Aluminum Alloy Tube 3 Series Aluminum Alloy Outside
Diameter Φ7mm
Product Description:
The aluminum alloy tube used in heat exchanger mainly produces 3
series aluminum alloy, 1 series aluminum alloy, 6 series aluminum
alloy, 5 series aluminum alloy.
The products are mainly used in various cooling heat exchange
tubes. Widely used in air conditioning, refrigerators, heating and
air conditioning equipment. Our products are produced by large
extruder, with advanced production process and special heat
treatment process, strict control of various processes, high
precision, low leakage rate, good quality. The product can provide
different state specifications of ruler tube and coil tube, high
induction density. We use high-quality remelting rod, source
control quality, using large-tonnage extruder, large extrusion
ratio extrusion, hot extrusion cold drawing mode of production,
multi-channel product quality inspection to ensure product quality,
to provide customers with the best quality products.
Features:
3003 aluminum alloy is an AL-Mn alloy, which is the most widely
used antirust aluminum. The strength of this alloy is not high
(slightly higher than that of industrial pure aluminum) , and it
can not be strengthened by heat treatment, therefore, the cold
working method is adopted to improve its mechanical properties:
high plasticity in the annealed state, good plasticity in the
semi-cold work hardening, low plasticity in the cold work
hardening, good corrosion resistance and good weldability, poor
machinability. Applications are mainly for low-load parts requiring
high plasticity and good weldability, working in liquid or gaseous
media, such as fuel tanks, gasoline or lubricating oil conduits,
various liquid containers and other low-load parts made of
deep-drawn wire used for rivets.
The company is a high-performance high-reliability professional
heat exchange aluminum tube manufacturers. The company has a strong
technical force, a core team with leading technology R & D
capabilities and years of experience in industrialisation, and has
established R & D Laboratories with universities and research
institutions such as Xi'an Jiaotong University, Nankai University
and the University of Changzhou.
Techical Parameters:
Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
The specifications in the form can be customized according to
customer's requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
Production Process:

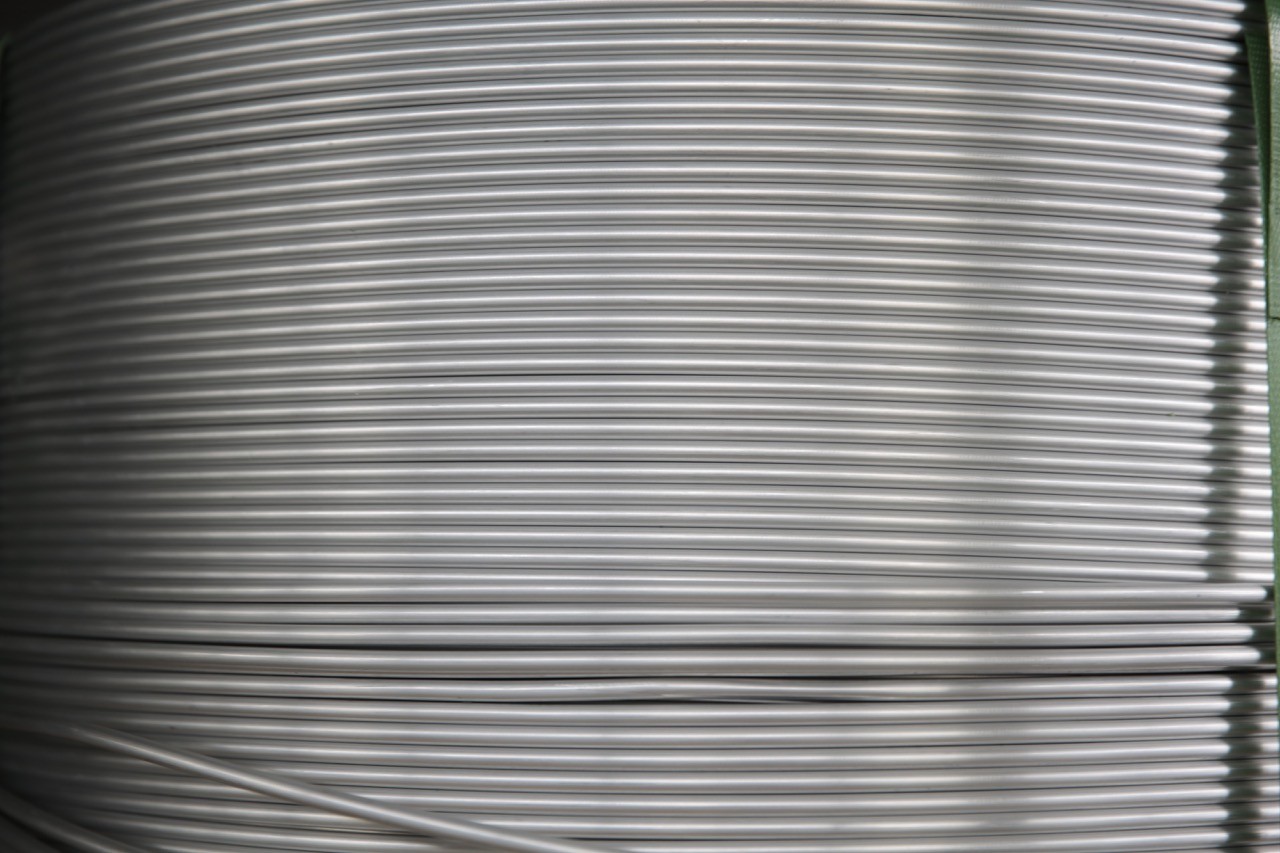

Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat
treatment-flaw detection -forming-inspection-finished product
packaging
Stright pipe
Raw material
procurement-inspection-cleaning-extrusion-coiling-straightening-flaw
detection-fine cutting-cleaning-heat treatment-inspection-finished
product packaging
Support and Services:
We support and provide technical services for the use of aluminum
pipes and assist customers to solve the production problems arising
during the actual use process. Including the performance detection
of aluminum pipe, technical analysis, the use of the back channel,
aluminum pipe welding, aluminum pipe pipe, aluminum pipe bending,
finished product leakage detection, etc., at the same time in the
use of related problems, we will also assist customers to solve
problems in the first time. And make corresponding adjustments
according to the actual situation.
FAQ.:
Q1: What kind of material alloy is the product?
A1: Currently, there are 1 series, 3 series, and 6 series aluminum
alloy.
Q2: What state and performance of the aluminum pipe can be
produced?
A2: can produce from hard state to soft state and interval
performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according
to the requirements, such as fixed ruler straight pipe and coil
pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
