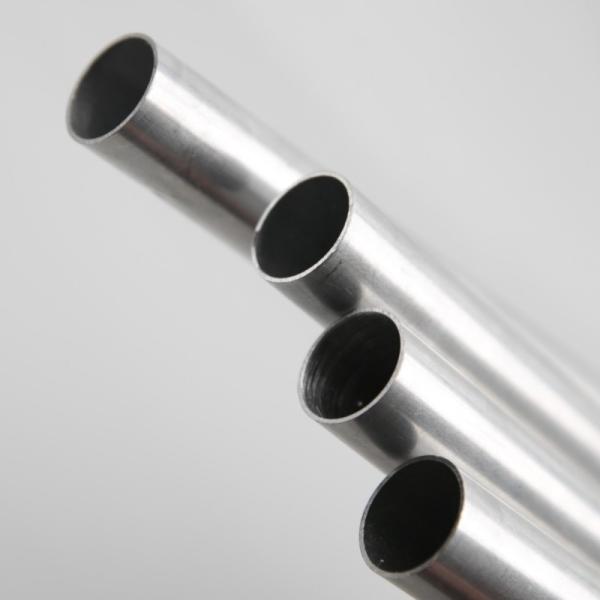

Aluminum 3003 H18 Aluminum Alloy Tube 3 Series Aluminum Alloy
Product Description:
The aluminum alloy tube used in heat exchanger mainly produces 3
series aluminum alloy, 1 series aluminum alloy, 6 series aluminum
alloy, 5 series aluminum alloy.
It is mainly used in various cooling heat exchange tubes. The tube
is widely used in air conditioning, refrigerators, heating and air
conditioning equipment. The product can provide different state
specifications of ruler tube and coil tube. Our products are
produced by large extruder, with advanced production process and
special heat treatment process, strict control of various
processes, high precision, low leakage rate, good quality. High
induction density. The utility model can meet the requirements of
the channel after the use of the expansion pipe. Product
specifications and performance can be customized according to
customer requirements. Adopt high quality remelting rod, control
quality at source, adopt big tonnage extruder, big extrusion ratio,
hot extrusion cold drawing mode of production, multi-channel
product quality inspection, ensure product quality, provide the
best quality products for customers.
Features:
This product is the most widely used one of the rust-proof
aluminum, this alloy strength is not high (slightly higher than
industrial pure aluminum) , can not heat treatment strengthening,
therefore, the cold working method is adopted to improve its
mechanical properties: high plasticity in the annealed state, good
plasticity in the semi-cold work hardening, low plasticity in the
cold work hardening, good corrosion resistance and good
weldability, poor machinability.
Strong technical force, the core team with leading technology R & D
capabilities and years of experience in industrialization, it has
established research and development laboratories with universities
and research institutes such as Xi'an Jiaotong University, Nankai
University and Changzhou University.
Techical Parameters:
Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
The specifications in the form can be customized according to
customer's requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
Production Process:
Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat
treatment-flaw detection -forming-inspection-finished product
packaging
Stright pipe
Raw material
procurement-inspection-cleaning-extrusion-coiling-straightening-flaw
detection-fine cutting-cleaning-heat treatment-inspection-finished
product packaging
Support and Services:
We support and provide technical services for the use of aluminum
pipes and assist customers to solve the production problems arising
during the actual use process. Including the performance detection
of aluminum pipe, technical analysis, the use of the back channel,
aluminum pipe welding, aluminum pipe pipe, aluminum pipe bending,
finished product leakage detection, etc., at the same time in the
use of related problems, we will also assist customers to solve
problems in the first time. And make corresponding adjustments
according to the actual situation.
FAQ.:
Q1: What kind of material alloy is the product?
A1: Currently, there are 1 series, 3 series, and 6 series aluminum
alloy.
Q2: What state and performance of the aluminum pipe can be
produced?
A2: can produce from hard state to soft state and interval
performance products
Q3: Can I customize the product specifications and requirements?
A3: Different specifications and states can be customized according
to the requirements, such as fixed ruler straight pipe and coil
pipe
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
