Extruded Aluminum Tubing Power Plant Water Cooling Tower 1070 D26
Aluminum Round Tubing
Product Description:

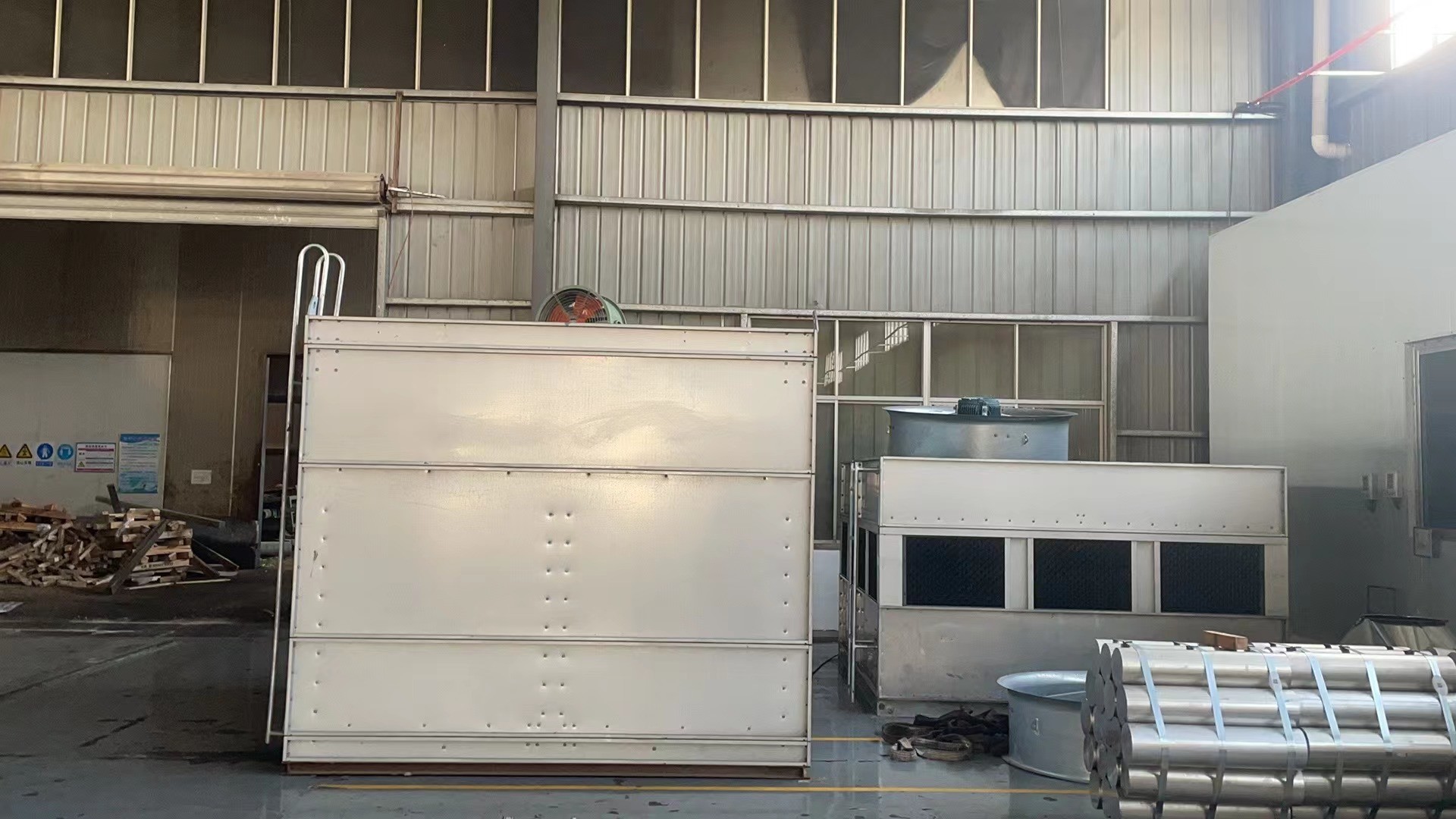

What is Air-cooled island tube
It is a power plant air-cooling unit, which consists of 56 wind
turbines, and its function is to cool down high-temperature steam.
Air is used as a coolant, either as a chiller or as a condenser.
The air cooler mainly consists of tube bundles, supports and fans.
The air cooler hot fluid flows inside the tubes and air is blown
through outside the tube bundle. Since the ventilation required for
heat exchange is large and the air pressure is not high, axial flow
ventilators are mostly used (see Fluid Conveying Machinery).
The air-cooled island tube is suitable for large-scale production
of high-precision, high-strength, good plasticity, and
large-diameter thin-walled high-end aluminum alloy pipes through
indirect mass production. It is extruded using a large-tonnage
extrusion press, resulting in higher density and better control of
product accuracy than cold drawing and stretching processes. The
monthly production capacity is 300 tons.
The production process of the air-cooled island tube includes the
following steps: raw material procurement, inspection, cleaning,
extrusion, stretching, ultrasonic testing, straightening, precision
cutting, inspection, and packaging of finished products. This
production process ensures that the tube can meet various
processing requirements such as piercing, flaring, expanding,
passivation, and water testing.
Features:
Use the special anticorrosive alloy, and add the anticorrosive
coating on the internal and external surface. Compared with
ordinary aluminum alloy, the corrosion resistance effect is greatly
improved, and the corrosion resistance experiment is> 1000
hours, which can greatly improve the service life of the product.
Using a special production process, the product has a high density
and high efficient heat transfer performance. From the raw material
to control the quality, the use of large tonnage extruder, hot
extrusion cold pull production mode, can produce a variety of state
performance. The product has high density, high heat transfer
performance, high corrosion resistance and small tolerance range.
Better quality.
Technical Parameters:
1070
Model Name |
Model Number | Outside Diameter /mm |
Wall Thickness/mm | Maximum Length/m | Length/mm | Tensile Strength /MPa | Non- proportional Elongation Strength /MPa | Elongation After Break A50/mm |
| Main Size | Series 1, Series 3 | 20-32 | 0.8-2.0 | | 5000-15000 | | | |
| Example | 1070 | 22 | 0.8 | 18 | 5635 | 100~135
| ≥80 | ≥5.00 |
| 26 | 1.0 | 6000 |
| 29 | 1.5 | 7000 |
| 32 | 1.8 | 9000 |
Technical requirements refer to national standards or customer
technical quality requirements for production.
Applications:
power plant water cooling tower
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Support and Services:
We can provide technical support and services for the use of
aluminum pipes, including technical guidance, production
assistance, etc. Our experienced technicians can assist you with
any problems your product may encounter. We also provide regular
after-sales service to ensure that your products are always run at
the highest efficiency. We are proud of our work and strive to
provide the best customer service.
If you have any questions or concerns about the product or your
use, please feel free to contact us. We will always give you the
answers you need.
FAQ:
Q1: What kind of material alloy is the product?
A1: At present, it can produce 1 series industrial aluminum alloy,
3003 and 3103 aluminum manganese alloy, and 6 series aluminum
alloy.
Q2: What state and performance of the aluminum pipe can be
produced?
A2: can produce from hard state to soft state and interval
performance products
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements
can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
