Salt Spray Corrosion Test Solar Energy Collector Calandria O D8
Product Description:
Utilizing specialized research and development of an anticorrosive
aluminum alloy, the plate solar collector flow pipe exhibits the
following characteristics: high corrosion resistance, > 1500
hours of salt spray corrosion testing, large pressure capacity,
maximum pressure resistance > 15 Mpa, more high temperature
resistance, 180° actual use temperature, higher heat transfer
efficiency, and long service life. more dependable and efficient.
appropriate for a wide range of flow medium. O, H12, H14, and H112
states are all states.
Features:
Improved heat transmission, improved anticorrosion resistance,
improved cost effectiveness, improved heat resistance, and improved
service life.
The flat plate collector has been extensively used the high
efficiency corrosion-resistant aluminum alloy that our firm
independently created. The use performance is equal to the quality
and copper pipe, and the cost is more optimized. To assure product
accuracy and quality, address welding and corrosion issues.
Products for plate collector aluminum pipe assemblies can be
offered in response to customer need.I
Applications:

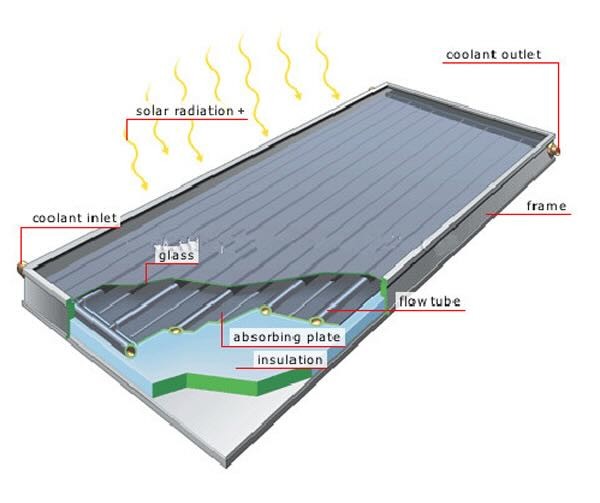

Flat-panel solar energy collector
solar collector
heat exchanger
Solar tube
Vacuum solar tube
Wall-mounted flat plate collector
Large solar energy collector
Technical Parameters:
Aluminum Alloy Calandria
| Product Name | Model Number (Material) | StateO | Salt Spray Corrosion Test >1500 hours Pressure Resistance ＞15
Mpa |
| Outside Diameter/mm | Thickness/mm | Tensile Strength/Mpa | Yield Strength /Mpa | Elongation | Length/mm | Shape |
Main Size Example | 30588 | H14 | 7-30 | 0.7-2.0 | 130-165 | ≥110 | ≥5% | Customized
| Coil |
| H12 | 115-150 | ≥75 | ＞12% | |
| O | 95-130 | ＞60 | ≥30% | |
| Calandria | H14, H12, O | 10 | 0.8-1.2
| | | | Customized | |
| 8 | | | | |
| 12 | | | | |
Can customize the production of a variety of specifications of the
collector tubes. |
Support and Services:
We can offer technical support for the usage of aluminum pipes to
assist customers in resolving technical production issues in the
real production application thanks to the expert technology and
extensive production application experience of our team. Expand the
capacity.
We will regularly check in on how the product is being used, hear
firsthand from customers, and make the necessary improvements in
light of the current circumstances.
Assure true collaboration and shared long-term growth.
FAQ:
Q1: What kind of alloy is the product made of?
A1: The product is made of a special high-performance
anti-corrosion aluminum alloy that we developed, and whose
performance is on par with that of the solar tubes produced by the
Hyde Lu Aluminum Company.
What type of aluminum pipe state and performance is possible?
A2: is capable of producing goods with varying softness and
hardness.
Q3: Can I alter the parameters and specs for the product?
A3: Depending on the needs, various specifications and states, such
as fixed ruler straight pipe and coil pipe, can be customized.
What is the starting order volume minimum?
A 4: Three tons are the minimum order volume.
