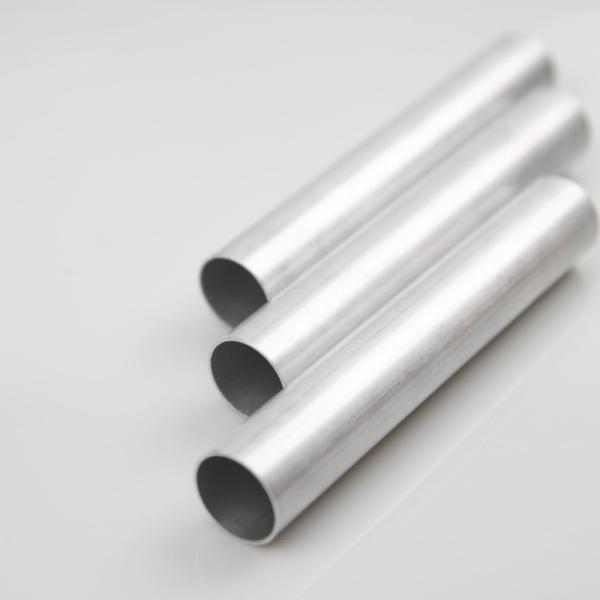

Air-cooled Island Tube
1050
(Main Size)
Model Number | State | Outside Diameter /mm | Wall Thickness /mm | Length /m | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm |
| Main Size |
| Series 1 | 1050 1060 1070 1050A | O | 20-32
| 0.8-2.0 |
5-15 | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 |
| Series 3 | 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
Product Description:
Air-cooled Island Tube Production Process
Raw Material Purchase - Inspection - Cleaning - Extrusion - Joint
Drawing - Straightening - Precision Cutting - Inspection -Finished
product packaging
The air-cooled island tube is suitable for large-scale production
of high-precision, high-strength, good plasticity, and
large-diameter thin-walled high-end aluminum alloy pipes through
indirect mass production. It is extruded using a large-tonnage
extrusion press, resulting in higher density and better control of
product accuracy than cold drawing and stretching processes. The
monthly production capacity is 300 tons.
Features:
Can mass produce high precision, high strength, good plasticity,
large diameter, thin-walled high-end aluminum alloy tubes and
pipes, the use of large-tonnage extruder extrusion, higher product
density, cold drawing process, better control of product precision.
Monthly output 300 tons.
Use the special anticorrosive alloy, and add the anticorrosive
coating on the internal and external surface. Compared with
ordinary aluminum alloy, the corrosion resistance effect is greatly
improved, and the corrosion resistance experiment is> 1000
hours, which can greatly improve the service life of the product.
Using a special production process, the product has a high density
and high efficient heat transfer performance. From the raw material
to control the quality, the use of large tonnage extruder, hot
extrusion cold pull production mode, can produce a variety of state
performance. The product has high density, high heat transfer
performance, high corrosion resistance , small tolerance range and
better quality.
Technical Parameters:
1050
Model Name |
Model Number | Outside Diameter /mm |
Wall Thickness/mm | Maximum Length/m | Length/mm | Tensile Strength /MPa | Non- proportional Elongation Strength /MPa | Elongation After Break A50/mm |
| Main Size | Series 1, Series 3 | 20-32 | 0.8-2.0 | | 5000-15000 | | | |
| Example | 1050 | 35 | 1.8 | 18 | 9000 | 100~135
| ≥80 | ≥5.00 |
| 21 | 1.0 | 7000 |
| 31 | 1.5 | 6000 |
| 32 | 1.9 | 8000 |
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.

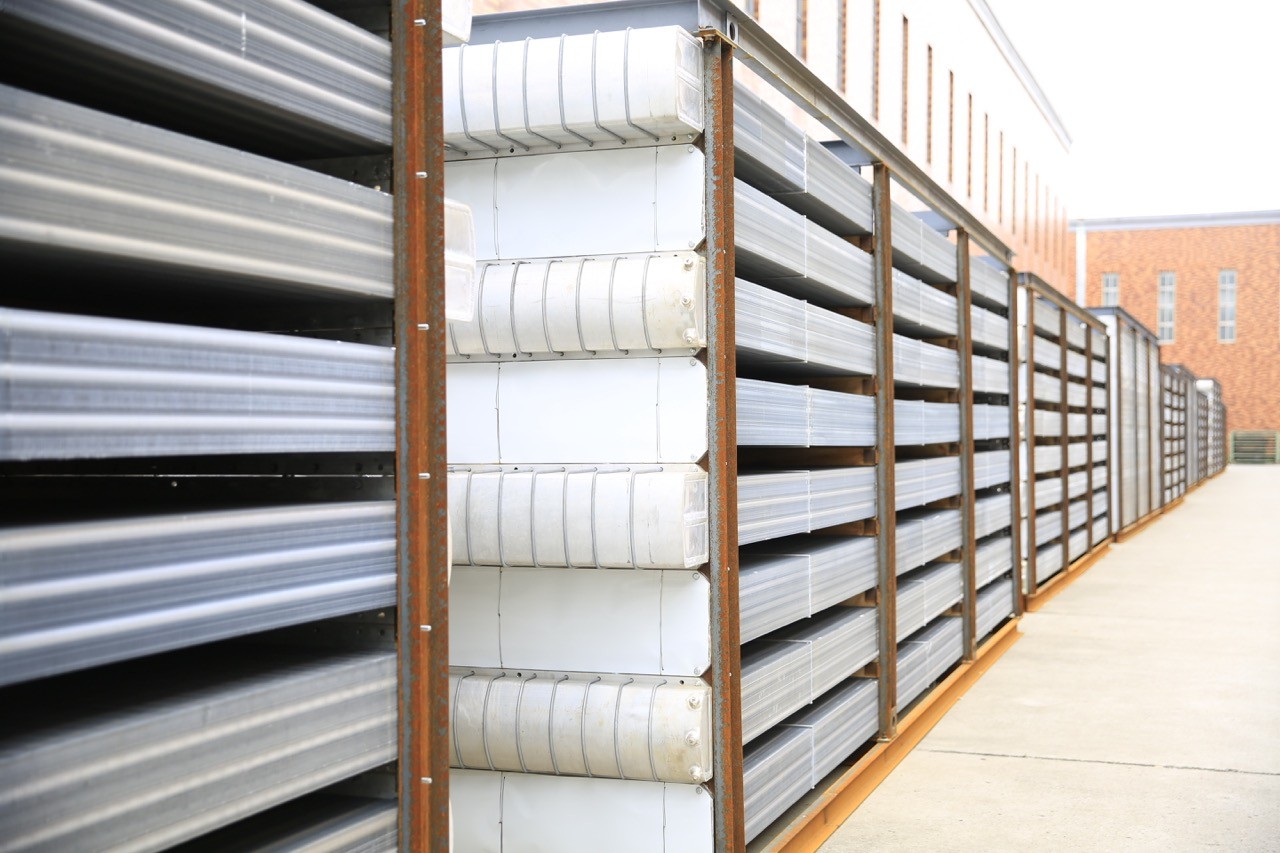

Indirect Dry Cooling System(Surface-type steam condenser) has been
used for various applications in the power industry for many years.
It is particularly well suited for large power stations.
The advantages of IDCT is:
Elimination of water usage from the condensing power cycle:
Flexible in power station site selection
No necessary of fans, reducing the power dissipation.
Less noise, better running environment.
Support and Services:
The technical support and services for Air-conditioner and
refrigerator tubes include:
- Provide timely and accurate advice on product installation and
maintenance
- Provide technical support and solutions for repair and maintenance
- Provide after-sales service and maintenance for all products
- Provide professional advice and timely response to customer
inquiries
- Provide product training and technical advisory services
