    Parallel Flow Micro Channel Condenser Heat Exchanger AC Aluminum Fins Fin Width 23.5mm

    Ask Lasest Price
    Brand Name : YUN NENG
    Model Number : 6815
    Certification : SO9001 ISO14001 ISO45001
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 6,000w per year
    Delivery Time : 30 working days after received your down payment
    • Product Details
    • Company Profile

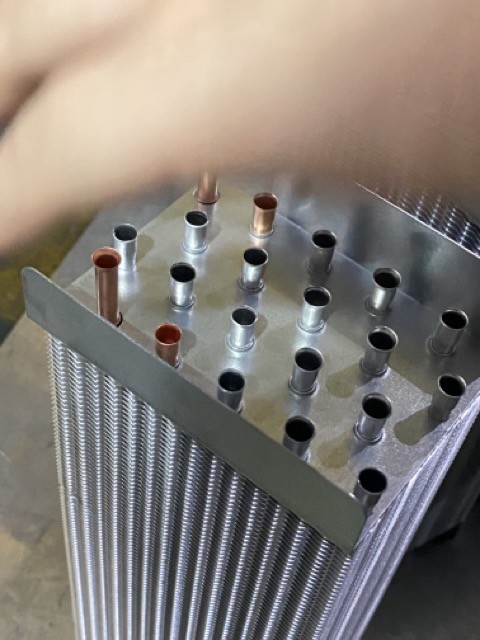

    Parallel Flow Micro Channel Condenser Heat Exchanger AC Aluminum Fins Fin Width 23.5mm

    Parallel Flow Heat Exchanger Micro Channel Condenser AC Aluminum Fins Fin Width 23.5mm


    Product Description:


    The design of Insert fin

    Heat fin at least single extension and wrapped in flat tube, air conditioning greenhouse condition or defrosting, condensate / frost water condensation on the fin, into the lower drainage tank, along the drain to extend direction, through the delay in the vertical part of the flat tube, quickly flow to the bottom of the heat exchanger, solved the parallel flow heat exchanger because of flat tube, wing water drainage problems, make the product under the condition of air conditioning greenhouse does not produce water plugging, eliminate the wind resistance caused by water blocking and heat bridge between fins. The heat transfer performance of the heat exchanger is stable, and the thermal curve of the unit is stable. The single side of the fin is open, forming is difficult, after many tests, the mold is used to solve the problem, and the wing shutter, corrugated plate, double shutter, flat plate and other places to strengthen the wind side heat transfer, to meet the needs of different working conditions.


    Production Process:


    Fin stamping →aggregate→header assembly→press forming→degrease spray (FLUX) drying,

    Preheating→(NB) →brazing→ forced air cooling →plastic connection pipe welding →helium leak detection→ultrasonic cleaning→coating→ drying →sheet metal assembly →final inspection→packaging


    Features:


    YUNNENG designs and manufactures high-performance microchannel condenser insert fins displaying a number of advantages over traditional condenser fin designs, the key of those are:


    Conformity and reliability

    Fings are very easy to break and deform after stamping and forming, and the automatic assembly machine(Manufacturing Equipment-Filling and molding machine) is used to avoid wing deformation and inconsistent wing spacing.


    Frost work condition

    With better frosting performance, 30% better than the traditional microchannel performance.


    Passivation + hydrophilic coating


    Techical Parameters:

    Parallel Flow Micro Channel Condenser Heat Exchanger AC Aluminum Fins Fin Width 23.5mmParallel Flow Micro Channel Condenser Heat Exchanger AC Aluminum Fins Fin Width 23.5mm


    Household heat pump and air-conditioning condenser;

    Applications:


    Commercial multi-line evaporator, condenser;

    Commercial heat pump system (module machine) evaporator;

    Bus and car air-conditioning evaporator, condenser;

    Commercial air-conditioning duct machine evaporator;

    Electric locomotive, rv, truck, engineering vehicle condensers, evaporator;

    New energy vehicle air conditioning condenser, evaporator...

    Etc.

    Parallel Flow Micro Channel Condenser Heat Exchanger AC Aluminum Fins Fin Width 23.5mmParallel Flow Micro Channel Condenser Heat Exchanger AC Aluminum Fins Fin Width 23.5mm
